pypose.bspline

class pypose.bspline(data, interval=0.1, extrapolate=False)

B-spline interpolation, which currently only supports SE3 LieTensor.

Parameters:

• data (LieTensor) – the input sparse poses with [batch_size, poses_num, dim] shape.

• interval (float) – the unit interval between interpolated poses. We assume the interval of adjacent input poses is 1. Therefore, if we set interval as 0.1, the interpolated poses between the poses at \(t\) and \(t+1\) will be at \([t, t+0.1, ..., t+0.9, t+1]\). Default: 0.1.

• extrapolate (bool) – flag to determine whether the interpolate poses pass the start and end poses. Default: False.

Returns:

the interpolated SE3 LieTensor.

Return type:

LieTensor

A poses query at \(t \in [t_i, t_{i+1})\) (i.e. a segment of the spline) only relies on the poses at four steps \(\{t_{i-1},t_i,t_{i+1},t_{i+2}\}\). It means that the interpolation between adjacent poses needs four consecutive poses. In this function, the interpolated poses are evenly distributed between a pose query according to the interval parameter.

The absolute pose of the spline \(T_{s}^w(t)\), where \(w\) denotes the world and \(s\) is the spline coordinate frame, can be calculated:

\[\begin{aligned} &T^w_s(t) = T^w_{i-1} \prod^{i+2}_{j=i}\delta T_j,\\ &\delta T_j= \exp(\lambda_{j-i}(t)\delta \hat{\xi}_j),\\ &\lambda(t) = MU(t), \end{aligned} \]

\(M\) is a predefined matrix, shown as follows:

\[M = \frac{1}{6}\begin{bmatrix} 5& 3& -3& 1 \\ 1& 3& 3& -2\\ 0& 0& 0& 1 \\ \end{bmatrix} \]

\(U(t)\) is a vector:

\[U(t) = \begin{bmatrix} 1\\ u(t)\\ u(t)^2\\ u(t)^3\\ \end{bmatrix} \]

where \(u(t)=(t-t_i)/\Delta t\), \(\Delta t = t_{i+1} - t_{i}\). \(t_i\) is the time point of the \(i_{th}\) given pose. \(t\) is the interpolation time point \(t \in [t_{i},t_{i+1})\).

\(\delta \hat{\xi}_j\) is the transformation between \(\hat{\xi}_{j-1}\) and \(\hat{\xi}_{j}\)

\[\begin{aligned} \delta \hat{\xi}_j :&= \log(\exp(\hat{\xi} _w^{j-1})\exp(\hat{\xi}_j^w)) &= \log(T_j^{j-1})\in \mathfrak{se3} \end{aligned} \]

Note

The implementation is based on Eq. (3), (4), (5), and (6) of this paper: David Hug, et al., HyperSLAM: A Generic and Modular Approach to Sensor Fusion and Simultaneous Localization And Mapping in Continuous-Time, 2020 International Conference on 3D Vision (3DV), Fukuoka, Japan, 2020.

Examples

>>> import torch, pypose as pp
>>> a1 = pp.euler2SO3(torch.Tensor([0., 0., 0.]))
>>> a2 = pp.euler2SO3(torch.Tensor([torch.pi / 4., torch.pi / 3., torch.pi / 2.]))
>>> poses = pp.SE3([[[0., 4., 0., a1[0], a1[1], a1[2], a1[3]],
...                  [0., 3., 0., a1[0], a1[1], a1[2], a1[3]],
...                  [0., 2., 0., a1[0], a1[1], a1[2], a1[3]],
...                  [0., 1., 0., a1[0], a1[1], a1[2], a1[3]],
...                  [1., 0., 1., a2[0], a2[1], a2[2], a2[3]],
...                  [2., 0., 1., a2[0], a2[1], a2[2], a2[3]],
...                  [3., 0., 1., a2[0], a2[1], a2[2], a2[3]],
...                  [4., 0., 1., a2[0], a2[1], a2[2], a2[3]]]])
>>> wayposes = pp.bspline(poses, 0.1)

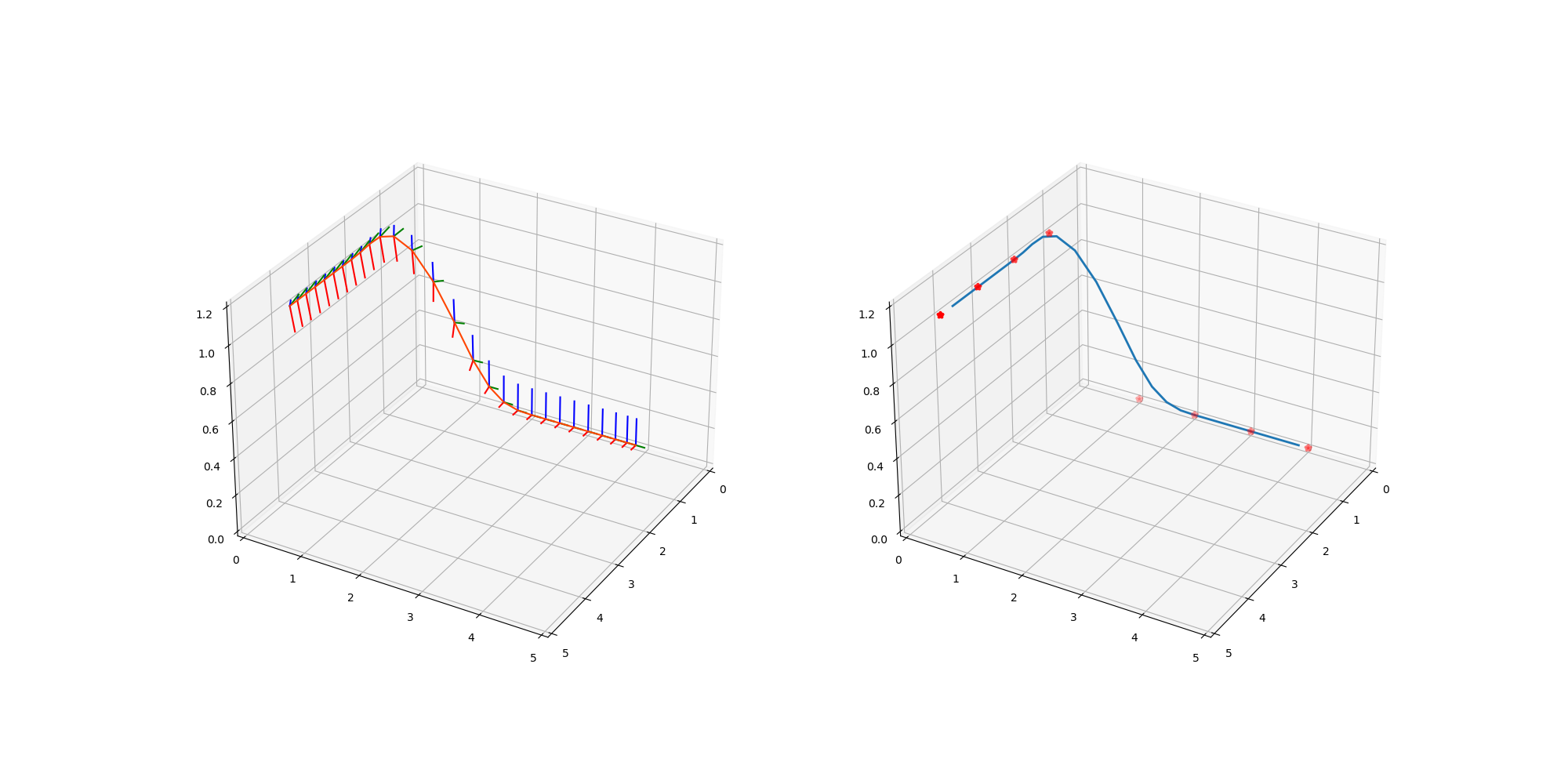

Fig. 1. Result of B Spline Interpolation in SE3.
