pypose.module.IMUPreintegrator¶

class pypose.module.IMUPreintegrator(pos=tensor([0., 0., 0.]), rot=SO3Type LieTensor: LieTensor([0., 0., 0., 1.]), vel=tensor([0., 0., 0.]), gravity=9.81007, gyro_cov=1.024e-05, acc_cov=0.0064, prop_cov=True, reset=False)[source]¶

Applies preintegration over IMU input signals.

Parameters:

pos (torch.Tensor, optional) – initial position. Default: torch.zeros(3).
rot (pypose.SO3, optional) – initial rotation. Default: pypose.identity_SO3().
vel (torch.Tensor, optional) – initial position. Default: torch.zeros(3).
gravity (float, optional) – the gravity acceleration. Default: 9.81007.
gyro_cov (torch.Tensor or float, optional) – covariance of the gyroscope. Use a three-element tensor, if the covariance on the three axes are different. Default: (3.2e-3)**2.
acc_cov (torch.Tensor or float, optional) – covariance of the accelerator. Use a three-element tensor, if the covariance on the three axes are different. Default: (8e-2)**2.
prop_cov (bool, optional) – flag to propagate the covariance matrix. Default: True.
reset (bool, optional) – flag to reset the initial states after the forward function is called. If False, the integration starts from the last integration. This flag is ignored if init_state is not None. Default: False.

Example

Preintegrator Initialization

>>> import torch
>>> import pypose as pp
>>> p = torch.zeros(3)    # Initial Position
>>> r = pp.identity_SO3() # Initial rotation
>>> v = torch.zeros(3)    # Initial Velocity
>>> integrator = pp.module.IMUPreintegrator(p, r, v)

Get IMU measurement

>>> ang = torch.tensor([0.1,0.1,0.1]) # angular velocity
>>> acc = torch.tensor([0.1,0.1,0.1]) # acceleration
>>> rot = pp.mat2SO3(torch.eye(3))    # Rotation (Optional)
>>> dt = torch.tensor([0.002])        # Time difference between two measurements

3. Preintegrating IMU measurements. Takes as input the IMU values and calculates the preintegrated IMU measurements.

>>> states = integrator(dt, ang, acc, rot)
{'rot': SO3Type LieTensor:
tensor([[[1.0000e-04, 1.0000e-04, 1.0000e-04, 1.0000e+00]]]),
'vel': tensor([[[ 0.0002,  0.0002, -0.0194]]]),
'pos': tensor([[[ 2.0000e-07,  2.0000e-07, -1.9420e-05]]]),
'cov': tensor([[[ 5.7583e-11, -5.6826e-19, -5.6827e-19,  0.0000e+00,  0.0000e+00,
                  0.0000e+00,  0.0000e+00,  0.0000e+00,  0.0000e+00],
                [-5.6826e-19,  5.7583e-11, -5.6827e-19,  0.0000e+00,  0.0000e+00,
                  0.0000e+00,  0.0000e+00,  0.0000e+00,  0.0000e+00],
                [-5.6827e-19, -5.6827e-19,  5.7583e-11,  0.0000e+00,  0.0000e+00,
                  0.0000e+00,  0.0000e+00,  0.0000e+00,  0.0000e+00],
                [ 0.0000e+00,  0.0000e+00,  0.0000e+00,  8.0000e-09, -3.3346e-20,
                  -1.0588e-19,  8.0000e-12,  1.5424e-23, -1.0340e-22],
                [ 0.0000e+00,  0.0000e+00,  0.0000e+00, -1.3922e-19,  8.0000e-09,
                  0.0000e+00, -8.7974e-23,  8.0000e-12,  0.0000e+00],
                [ 0.0000e+00,  0.0000e+00,  0.0000e+00,  0.0000e+00, -1.0588e-19,
                  8.0000e-09,  0.0000e+00, -1.0340e-22,  8.0000e-12],
                [ 0.0000e+00,  0.0000e+00,  0.0000e+00,  8.0000e-12,  1.5424e-23,
                  -1.0340e-22,  8.0000e-15, -1.2868e-26,  0.0000e+00],
                [ 0.0000e+00,  0.0000e+00,  0.0000e+00, -8.7974e-23,  8.0000e-12,
                  0.0000e+00, -1.2868e-26,  8.0000e-15,  0.0000e+00],
                [ 0.0000e+00,  0.0000e+00,  0.0000e+00,  0.0000e+00, -1.0340e-22,
                  8.0000e-12,  0.0000e+00,  0.0000e+00,  8.0000e-15]]])}

Preintegrated IMU odometry from the KITTI dataset with and without known rotation.

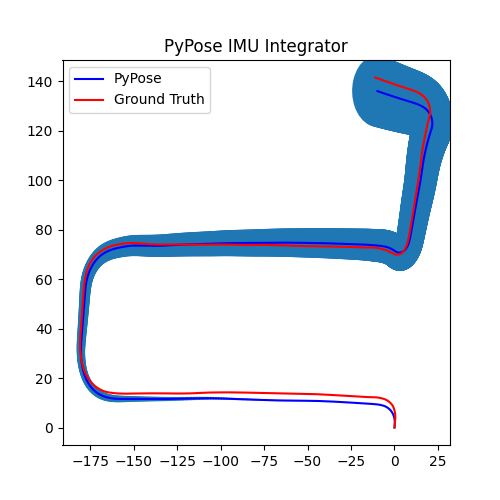

Fig. 1. Known Rotation.

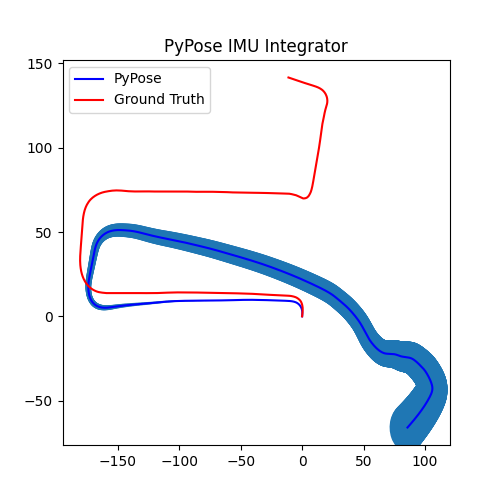

Fig. 2. Estimated Rotation.

Note

The examples generating the above figures can be found at examples/module/imu.

forward(dt, gyro, acc, rot=None, gyro_cov=None, acc_cov=None, init_state=None)[source]¶

Propagate IMU states from duration (\(\delta t\)), angular rate (\(\omega\)), linear acceleration (\(\mathbf{a}\)) in body frame, as well as their measurement covariance for gyroscope \(C_{g}\) and acceleration \(C_{\mathbf{a}}\). Known IMU rotation estimation \(R\) can be provided for better precision.

Parameters:

dt (torch.Tensor) – time interval from last update.
gyro (torch.Tensor) – angular rate (\(\omega\)) in IMU body frame.
acc (torch.Tensor) – linear acceleration (\(\mathbf{a}\)) in IMU body frame (raw sensor input with gravity).
rot (pypose.SO3, optional) – known IMU rotation on the body frame.
gyro_cov (torch.Tensor, optional) – covariance matrix of angular rate. If not given, the default state in constructor will be used.
acc_cov (torch.Tensor, optional) – covariance matrix of linear acceleration. If not given, the default state in constructor will be used.
init_state (dict, optional) – the initial state of the integration. The dictionary should be in form of {'pos': torch.Tensor, 'rot': pypose.SO3, 'vel': torch.Tensor}. If not given, the initial state in constructor will be used.

Shape:

input (dt, gyro, acc): This layer supports the input shape with \((B, F, H_{in})\), \((F, H_{in})\) and \((H_{in})\), where \(B\) is the batch size (or the number of IMU), \(F\) is the number of frames (measurements), and \(H_{in}\) is the raw sensor signals.
init_state (Optional): The initial state of the integration. It contains pos: initial position, rot: initial rotation, vel: initial velocity, with the shape \((B, H_{in})\).
output: a dict of integrated state including pos: position, rot: rotation, and vel: velocity, each of which has a shape \((B, F, H_{out})\), where \(H_{out}\) is the signal dimension. If prop_cov is True, it will also include cov: covariance matrix in shape of \((B, 9, 9)\).

IMU Measurements Integration:

\[\begin{align*} {\Delta}R_{ik+1} &= {\Delta}R_{ik} \mathrm{Exp} (w_k {\Delta}t) \\ {\Delta}v_{ik+1} &= {\Delta}v_{ik} + {\Delta}R_{ik} a_k {\Delta}t \\ {\Delta}p_{ik+1} &= {\Delta}p_{ik} + {\Delta}v_{ik} {\Delta}t + \frac{1}{2} {\Delta}R_{ik} a_k {\Delta}t^2 \end{align*} \]

where:

\({\Delta}R_{ik}\) is the preintegrated rotation between the \(i\)-th and \(k\)-th time step.

\({\Delta}v_{ik}\) is the preintegrated velocity between the \(i\)-th and \(k\)-th time step.

\({\Delta}p_{ik}\) is the preintegrated position between the \(i\)-th and \(k\)-th time step.

\(a_k\) is linear acceleration at the \(k\)-th time step.

\(w_k\) is angular rate at the \(k\)-th time step.

\({\Delta}t\) is the time interval from time step \(k\)-th to time step \({k+1}\)-th time step.

Uncertainty Propagation:

\[\begin{align*} C_{ik+1} &= A C_{ik} A^T + B \mathrm{diag}(C_g, C_a) B^T \\ &= A C A^T + B_g C_g B_g^T + B_a C_a B_a^T \end{align*}, \]

where

\[A = \begin{bmatrix} {\Delta}R_{ik+1}^T & 0_{3*3} \\ -{\Delta}R_{ik} (a_k^{\wedge}) {\Delta}t & I_{3*3} & 0_{3*3} \\ -1/2{\Delta}R_{ik} (a_k^{\wedge}) {\Delta}t^2 & I_{3*3} {\Delta}t & I_{3*3} \end{bmatrix}, \]

\[B = [B_g, B_a] \\ \]

\[B_g = \begin{bmatrix} J_r^k \Delta t \\ 0_{3*3} \\ 0_{3*3} \end{bmatrix}, B_a = \begin{bmatrix} 0_{3*3} \\ {\Delta}R_{ik} {\Delta}t \\ 1/2 {\Delta}R_{ik} {\Delta}t^2 \end{bmatrix},\]

where \(\cdot^\wedge\) is the skew matrix (pypose.vec2skew()), \(C \in\mathbf{R}^{9\times 9}\) is the covariance matrix, and \(J_r^k\) is the right jacobian (pypose.Jr()) of integrated rotation \(\mathrm{Exp}(w_k{\Delta}t)\) at \(k\)-th time step, \(C_{g}\) and \(C_{\mathbf{a}}\) are measurement covariance of angular rate and acceleration, respectively.

Note

Output covariance (Shape: \((B, 9, 9)\)) is in the order of rotation, velocity, and position.

With IMU preintegration, the propagated IMU status:

\[\begin{align*} R_j &= {\Delta}R_{ij} * R_i \\ v_j &= R_i * {\Delta}v_{ij} + v_i + g \Delta t_{ij} \\ p_j &= R_i * {\Delta}p_{ij} + p_i + v_i \Delta t_{ij} + 1/2 g \Delta t_{ij}^2 \\ \end{align*} \]

where:

\({\Delta}R_{ij}\), \({\Delta}v_{ij}\), \({\Delta}p_{ij}\) are the preintegrated measurements.

\(R_i\), \(v_i\), and \(p_i\) are the initial state. Default initial values are used if reset is True.

\(R_j\), \(v_j\), and \(p_j\) are the propagated state variables.

\({\Delta}t_{ij}\) is the time interval from frame i to j.

Note

The implementation is based on Eq. (A7), (A8), (A9), and (A10) of this report:

Christian Forster, et al., IMU Preintegration on Manifold for Efficient Visual-Inertial Maximum-a-posteriori Estimation, Technical Report GT-IRIM-CP&R-2015-001, 2015.

integrate(dt, gyro, acc, rot=None, init_rot=None)[source]¶

Integrate the IMU sensor signals gyroscope (angular rate \(\omega\)), linear acceleration (\(\mathbf{a}\)) in body frame to calculate the increments on the rotation (\(\Delta r\)), velocity (\(\Delta v\)) and position (\(\Delta p\)) of the IMU states. The IMU rotation of the body frame (rot) is optional, which can be utilized to compensate the gravity.

\[\begin{align*} {\Delta}r_{ij} &= \int_{t \in [t_i, t_j]} w_k \ dt \\ {\Delta}v_{ij} &= \int_{t \in [t_i, t_j]} R_{k} a_k \ dt \\ {\Delta}p_{ij} &= \int\int_{t \in [t_i, t_j]} R_{k} a_k\ dt^2\ \\ \end{align*} \]

Parameters:

dt (torch.Tensor) – time interval from last update.
gyro (torch.Tensor) – angular rate (\(\omega\)) in IMU body frame.
acc (torch.Tensor) – linear acceleration (\(\mathbf{a}\)) in IMU body frame (raw sensor input with gravity).
rot (pypose.SO3, optional) – known IMU rotation on the body frame.
init_rot (pypose.SO3, optional) – the initial orientation of the IMU state. If not given, the initial state in constructor will be used.

Shape:

input (dt, gyro, acc): This layer supports the input shape with \((B, F, H_{in})\), \((F, H_{in})\) and \((H_{in})\), where \(B\) is the batch size (or the number of IMU), \(F\) is the number of frames (measurements), and \(H_{in}\) is the raw sensor signals.
init_rot: The initial orientation of the integration, which helps to compensate for the gravity. It contains the shape \((B, H_{in})\). d
rot: The ground truth orientation of the integration. If this parameter is given, the integrator will use the ground truth orientation to compensate the gravity.

Returns:: integrated states including a: acceleration in the body frame without gravity Dp: position increments, Dr: rotation increments, Dv: velocity increments, w: rotation velocity and Dt: time increments, each of which has a shape \((B, F, H_{out})\), where \(H_{out}\) is the signal dimension.
Return type:: dict

classmethod predict(init_state, integrate)[source]¶

Propogate the next IMU state from the initial IMU state (init_state) with the preintegrated IMU measurements (\(\Delta{p}\), \(\Delta{v}\) and \(\Delta{r}\)).

\[\begin{align*} R_j &= {\Delta}R_{ij} * R_i \\ v_j &= R_i * {\Delta}v_{ij} + v_i + g \Delta t_{ij} \\ p_j &= R_i * {\Delta}p_{ij} + p_i + v_i \Delta t_{ij} + 1/2 g \Delta t_{ij}^2 \\ \end{align*} \]

Parameters:

init_state (dict) – the initial state of the integration. The dictionary should be in form of {'pos': torch.Tensor, 'rot': pypose.SO3, 'vel': torch.Tensor}.
integrate (dict) – the preintegrated IMU measurements. The dictionary should be in form of {'Dp': torch.Tensor, 'Dr': pypose.SO3, 'Dv': torch.Tensor, 'Dt': torch.Tensor}.

Shape:

init_state: The initial state of the integration. It contains pos: initial position, rot: initial rotation, vel: initial velocity, with the shape \((B, H_{in})\).
integrate: The preintegrated IMU measurements. It contains Dp, Dv, Dr, and Dt, with the shape \((B, F, H_{out})\). It follows the output of the function integrate.

Returns:: integrated states including pos: position, rot: rotation, and vel: velocity, each of which has a shape \((B, F, H_{out})\), where \(H_{out}\) is the signal dimension.
Return type:: dict
